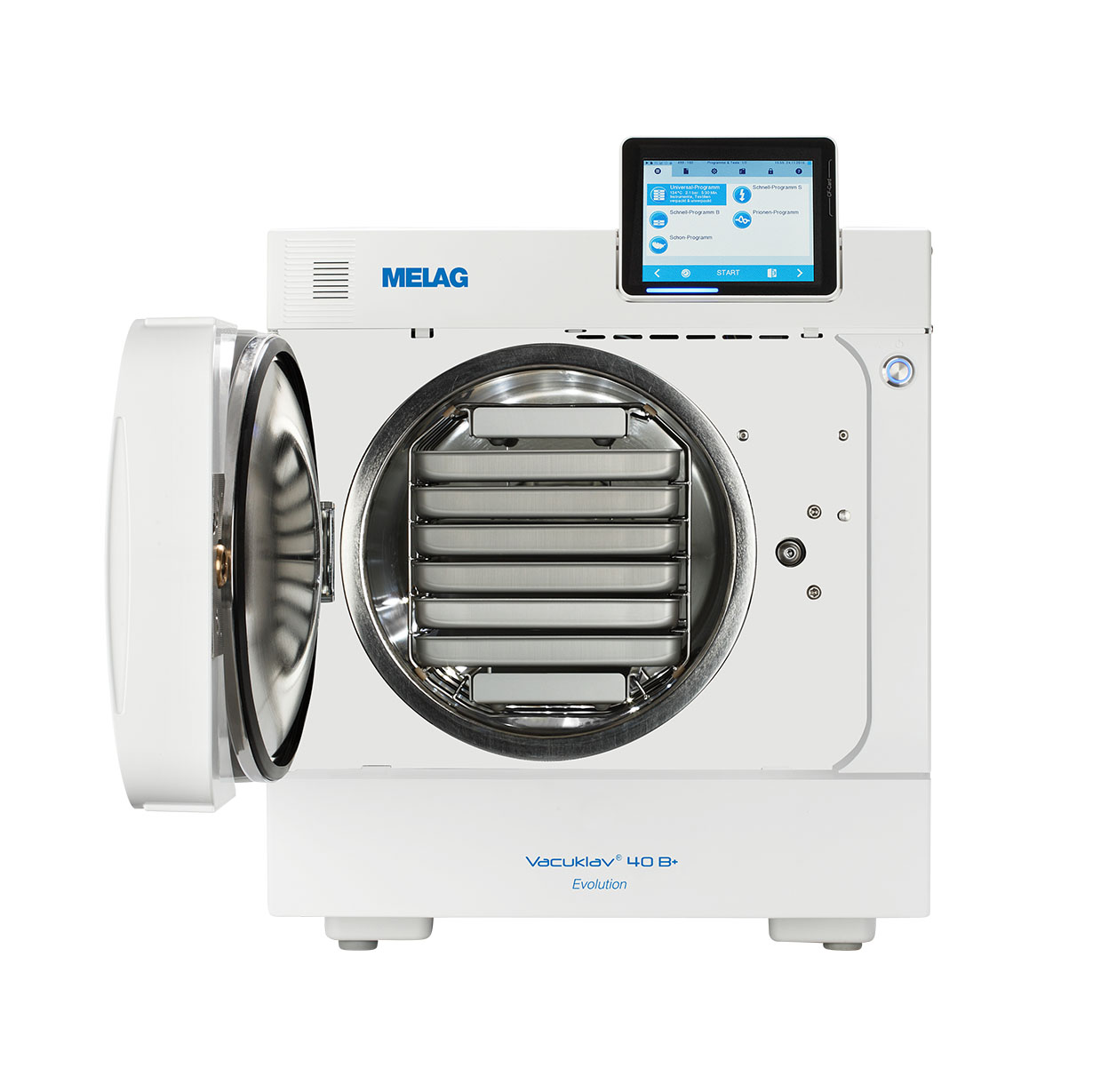

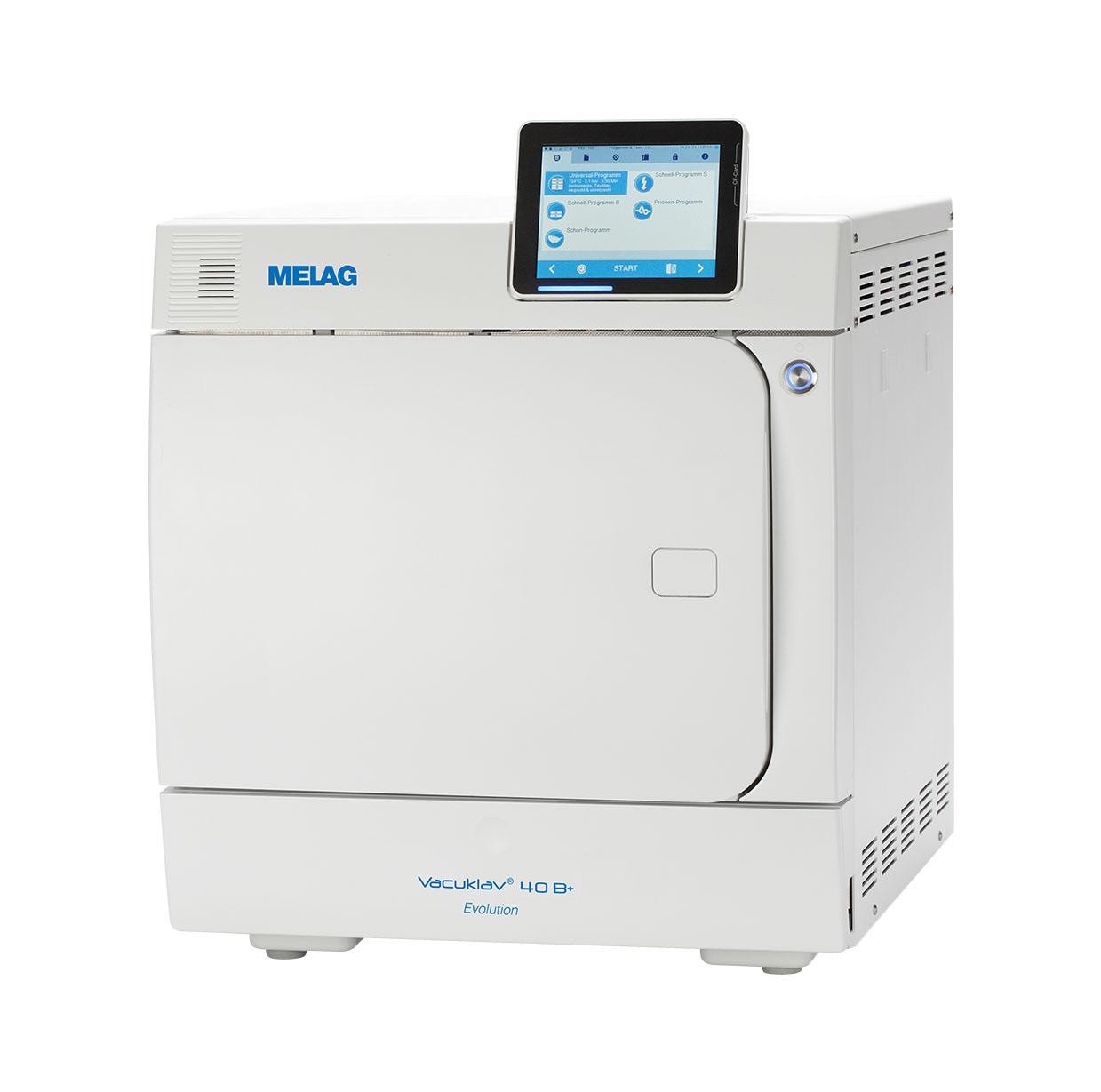

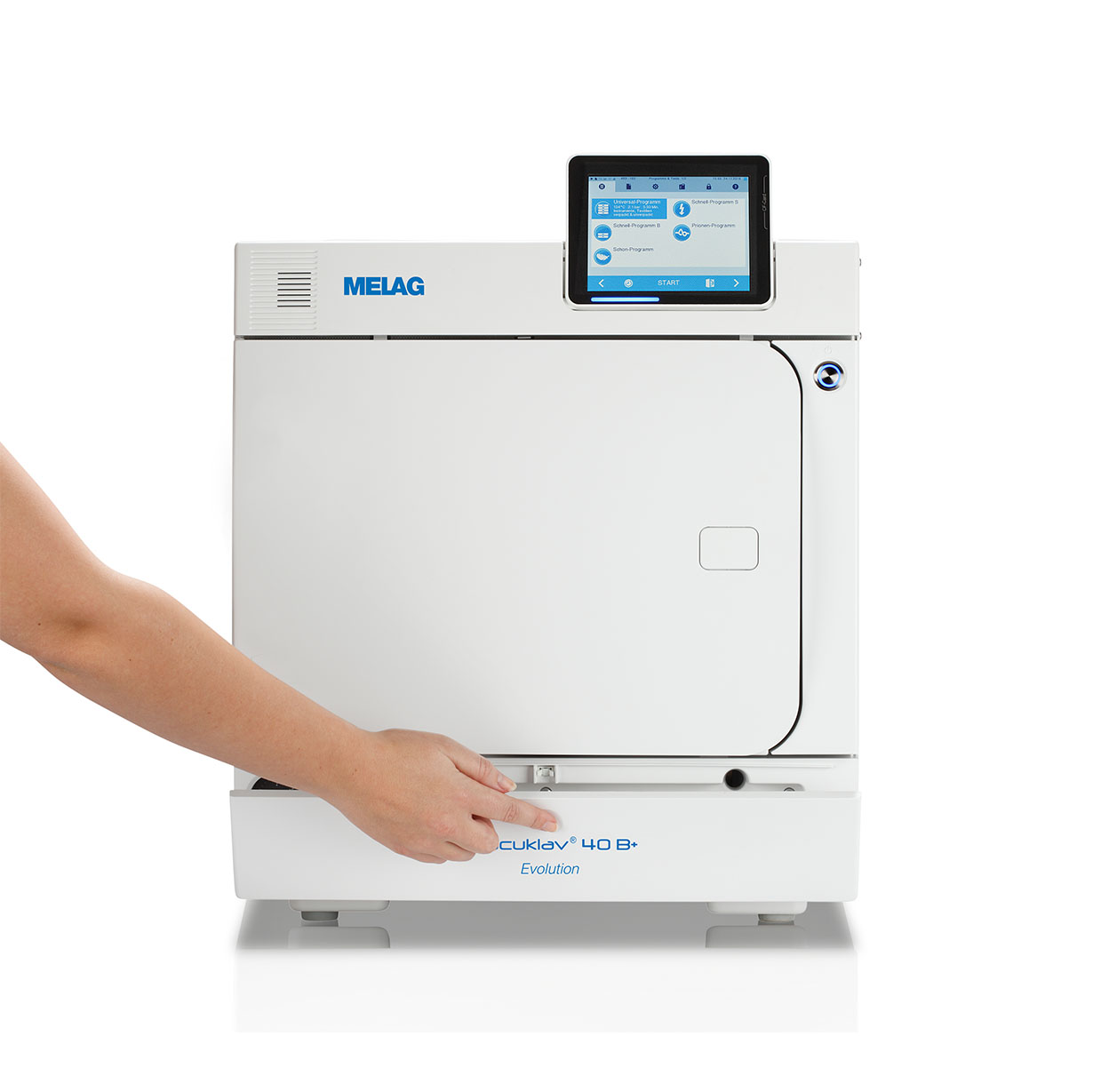

MELAG Vacuklav 40 B+ Evolution
MELAG Vacuklav 40 B+ Evolution (inc. mount for trays)
The Premium Class B autoclave with DRYtelligence® Technology
Decades of experience in developing intelligent, energy-efficient steam sterilizers combined with the pioneering work of the best MELAG engineers has resulted in the development of a new generation of practice autoclaves: the Premium-Class Evolution!
The autoclave Vacuklav 40 B+ Evolution impresses with its high loading capacities, an intuitive operating concept and record operating times. The B-Class cycle with a fractionated prevacuum ensures safe sterilization of even complex hollow body instruments, such as hand pieces or endoscopes.
The fixed water connection of the MELAG steam sterilizer makes for effective cooling of the high-performance vacuum system. The DRYtelligence® Technology and Sleep-Mode button of the new Vacuklav 40 B+ Evolution ensure both energy and time efficiency as well as userfriendliness in practice and clinic use.
All the product highlights of the B-Class steam sterilizer Vacuklav 40 B+ Evolution at a glance
Record operating times through the patented double-jacket technology: wrapped instruments can be sterilized in the Quick-Program in only 20 minutes; unwrapped instruments are sterilized in only 10 minutes (inc. fractionated pre-vacuum and drying)
High loading capacity of 9 kg: the autoclave can now accommodate 8 trays so as to make the most efficient use of the sterilization chamber
Integrated documentation: no additional costs for documentation thanks to the integrated CF card slot and two network interfaces
XXL colour-touch display: documentation, approval and traceability of the sterilization cycle and an intuitive operating interface – easy to use and legally compliant
DRYtelligence®: the new MELAG intelligent drying technology guarantees the best drying results and up to 80 % shorter drying times
Innovative media board: the new design of the media board makes for quick access to the most important components of the steam sterilizer

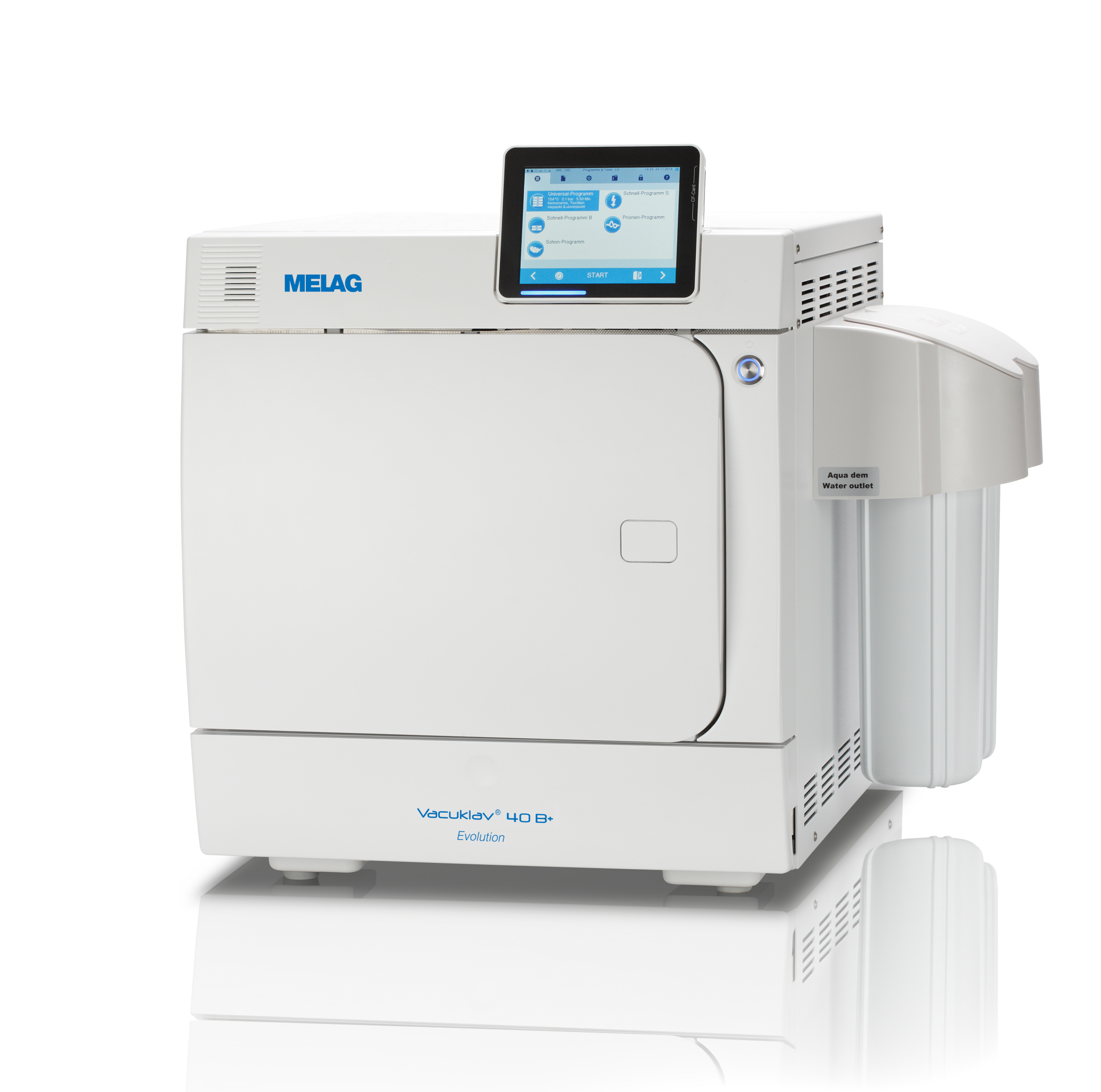

Vacuklav 40 B+ Evolution is connected to a water treatment unit to ensure automatic supply of the autoclave with demineralized water. You can produce high-quality demineralized water using either the MELAdem 40 compact water treatment system, the economical and environmentally-friendly MELAdem 47 or the high-performance MELAdem 53.
Take your instrument decontamination process to the next level with our wide range of accessories. Print barcode-labels using the MELAG MELAprint 60 to trace the instruments and other loading elements. The MELAstore-System optimizes the entire instrument decontamination workflow. Using the MELAG MELAstore-Boxes in conjunction with MELAstore-Trays ensures maximum safety and time-efficiency in a practice and clinic setting.
Technical Data:
| Device Dimensions (w x h x d) | 46 x 50 x 55 cm (Height incl. Display 56 cm) |
|---|---|
| Min. Surface Space | Device feet fit on 50 cm tabletop |
| Chamber size | Ø 25 cm x 35 cm long |
| Chamber volume | 18L |
| Load quantity | Max. 9 kg instruments / 2 kg textiles |
| Weight | 55 kg |
| Power supply | 220 – 240 V / 50/60Hz |
