Melag Melaseal 200 Evolution

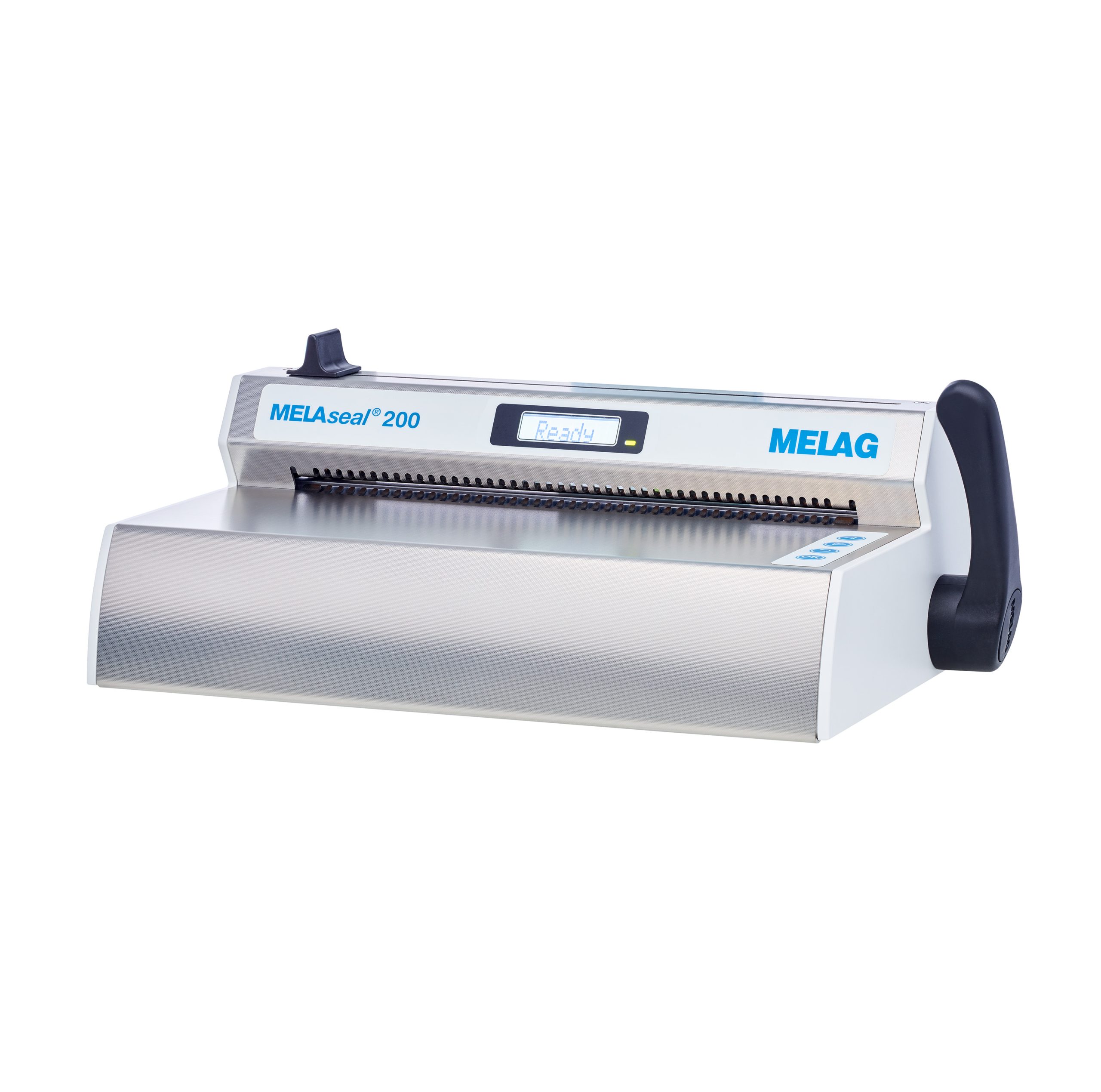

MELAG MELAseal 200 (inc. MELAG USB flash drive) Compact sealing device in compliance with EN ISO 11607-2
The innovative MELAseal 200 sealing device combines reliable technology and easy operation with compact dimensions. Above all, this bar sealer is validatable and ready to use only 90 seconds after activation! MELAseal 200 ensures the non-stop sealing of sterilization packages (e.g. MELAfol) in only three seconds per sealing procedure. All the sealing parameters are monitored by the integrated electronics. Equipped with two USB interfaces for maximum safety, the sealing device can save the log files on MELAG USB flash drive or a practice computer and network (MELAtrace software required).
Discover the unique advantages of the sealing device MELAseal 200
Short pre-heating and sealing times ensure a fast sealing process
Legally compliant and validatable in accordance with international hygiene standards
Compact device dimensions take up the minimum amount of space on your worktop
LCD-Display and MELAG four-key-concept make for easy and intuitive operation
Two USB Interfaces to output the log-files easily
Monitoring and documentation of the sealing parameters (pressure, time and temperature)
Power saving mode and seal check function guarantee best-possible efficiency

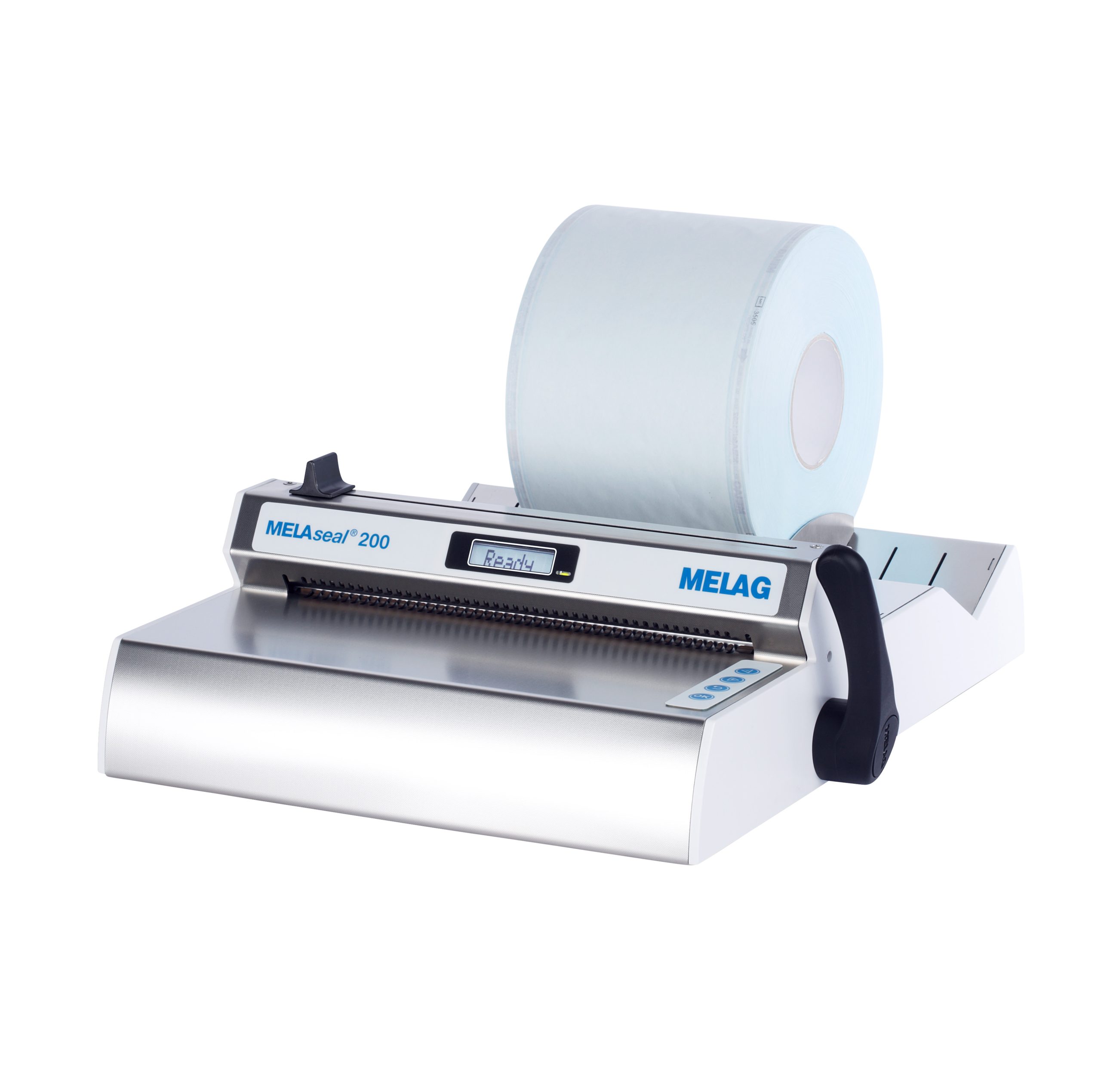

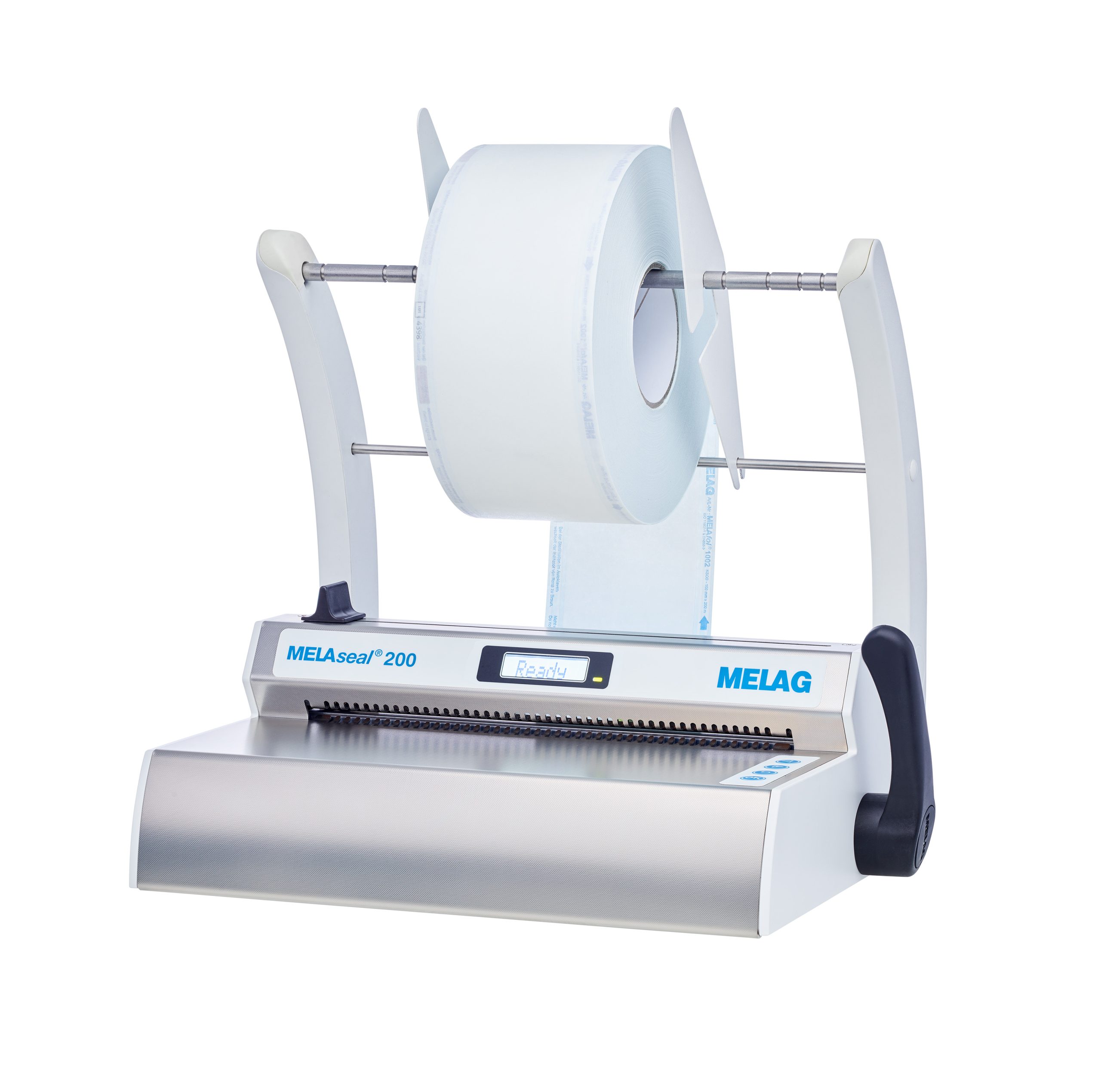

Four different reel dispensers are available for the setup conditions in the decontamination room of your practice or clinic. The reel dispenser “standard” places the rolls on the rear of the sealing device. The reel dispensers “comfort”, Deluxe and our wall-mounted reel dispenser hang the MELAfol rolls above the sealing device, thereby saving space. The reel dispenser Deluxe is fitted with a hand wheel to ensure easy and ergonomic feeding of the MELAfol rolls.
Technical Data:
| Device Dimensions (w x h x d) | 41.5 x 15.0 x 24.0 cm |
|---|---|
| Weight | 5.4kg |
| Interfaces | 1x USB-Stick, 1x USB computer interface |
| Sealing seam width | 10mm |
| Sealing seam length | 275 mm |
| Sealing time | ca. 3 seconds |
| Temperature range | 100 – 210°C |
| Heating-up time | Approx. 90 seconds |
| Power supply | 230 V / 50/60Hz |
| Power Consumption | 300 W |
